With the Stereotactic Breast Biopsy Phantom, staff and residents can practice needle insertion for stereotactic breast biopsy procedures. The Ultrasound Breast Biopsy Phantom can be used to dynamically locate lesions and practice needle placement.

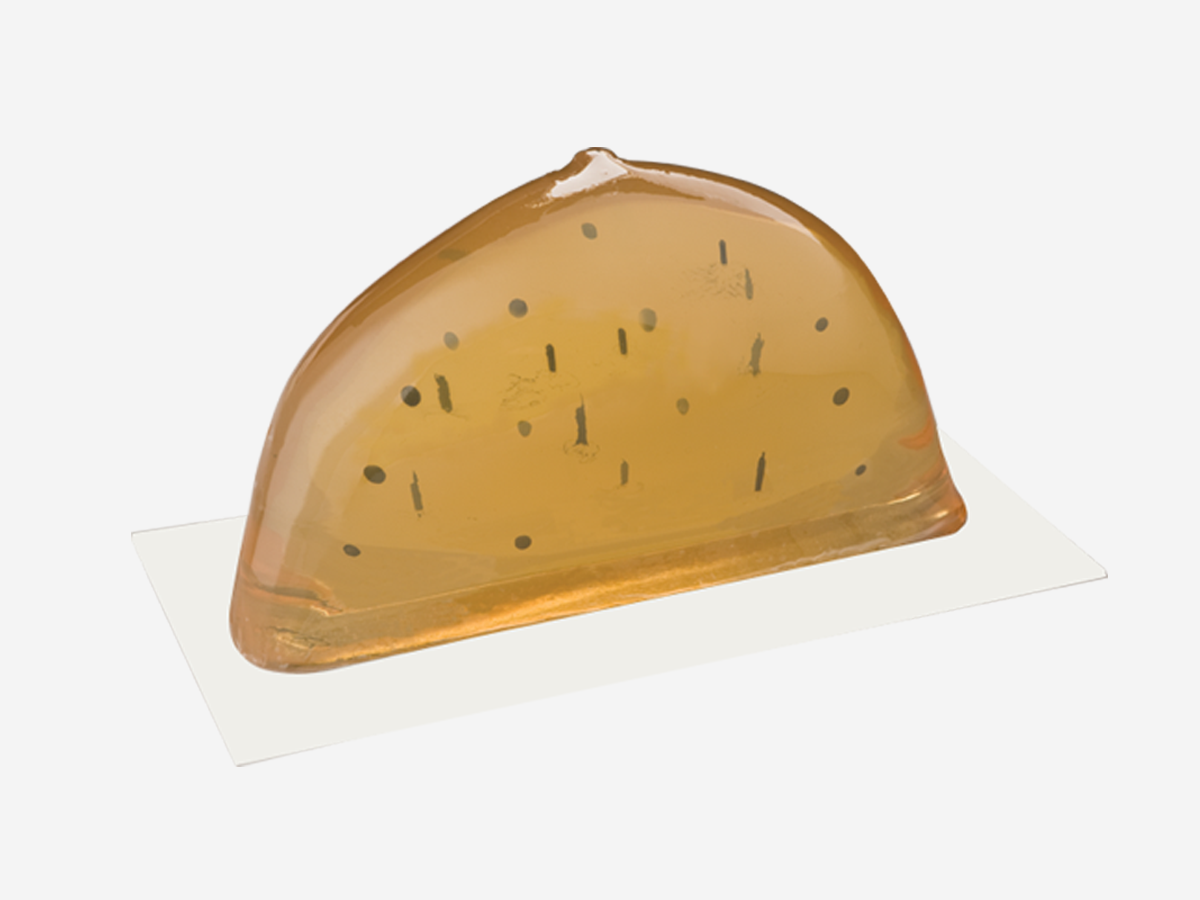

Stereotactic Breast Biopsy Phantom

  • Multiple imbedded radiopaque lesions
    • Solid gel lesions sized between 2 to 5 mm for practicing core biopsies
  • Liquid dye lesions for fine needle aspiration
  • Made of clear gel encased in soft vinyl for easy compression and skin-like resistance to needle insertion

Ultrasound Breast Biopsy Phantom

  • Scan the phantom using clinical settings, and watch the ultrasound display as the needle is inserted into cysts and lesions
  • Skin-like resistance to needle insertion
  • Ultrasound appearance simulates soft tissue
  • Supports multiple needle punctures over time (when stored per manufacturer guidelines)

Add these simple tools to your training program



Specifications

Stereotactic Breast Biopsy Phantom

Construction

Gel with attenuation properties similar to breast tissue

Outer Casing

Vinyl

Multiple Radiopaque Lesions

2 to 5 mm

Materials

Solid Gel for core biopsy; Liquid dye for fine needle aspiration

Storage Temperature

5 - 32° C (40 to 90° F)

Dimensions (L x W x H)

21 x 6 x 11 cm

Weight

1.06 kg (2.4 lb.)

More
Ultrasound Breast Biopsy Phantom

Fluid-filled Cysts

3 cysts, 12 to 15 mm diameter

High Contrast Lesions

Solid masses, 7 to 10 mm diameter

Low Contrast Lesions

4 solid masses, 7 to 10 mm diameter

Storage Temperature

0° to 40° C

Diameter

12.7 cm

Height

7.6 cm

Weight

625 g (1 lb. 6 oz.)
