Sono Ultrasound Phantoms are relied on for training and QA testing of B-mode ultrasound systems. A selection of models supports your clinical needs, and helps you meet requirements.


Ensure your ultrasound systems are accurately imaging complex cases. Consistent testing with your ultrasound devices means greater confidence in your patient assessments.

Maintain Compliance
The Sono family of Ultrasound Phantoms are generally compatible with AIUM, ACR, AAPM, IEC 62736, IPEM 102, and EFSUMB TQA QA Guidelines.

Unparalleled Tissue Mimicking
Patented High Equivalency Gel (HE Gel™) provides multi-frequency, high quality, reproducible images. Material stability supports testing across the entire frequency range — 2 to 18 MHz — for a variety of transducers and systems. Linear response of attenuation to frequencies over 8 MHz supports accurate axial resolution and penetration depth representative of human tissue.

Suite of Offerings
Our Sono Phantoms suite offers precisely spaced pin targets and fibers, and varying surfaces, for testing various applications.


Sono403™ Phantom: Multi-Purpose

  • Verify system settings and depth of penetration for small to very large patients
  • Simulates typical depth through abdomen to the liver
  • Precisely placed targets support grey scale and axial resolution system measurements

Learn more >

Sono404™ Phantom for Small Parts

  • Supports Cardiology, Breast Care, Musculoskeletal and Vascular applications
  • Closely spaced pin targets make it ideal for testing high frequency transducers
  • Enables training and testing the most difficult cases, including small parts and intra-cavity ultrasound systems

Learn more >

405 GSX LE: Troubleshooting Phantom

  • Supports Biomeds who need to troubleshoot ultrasound systems.
  • Two horizontal cross fibers in the middle of the phantom can be used for aligning the transducer and as reference markers to ensure consistent setup over time.
  • Triangular grey scale targets support resolution testing of high-performance ultrasound scanners

Sono408™ Spherical Lesion Phantom

  • Ensure system presets are based image quality, not default settings, for optimal performance
  • Ideal for spherical lesions that have negligible echogenicity and produce no distal enhancement or shadowing
  • Supports testing high-frequency transducers used in echocardiography

Learn more >

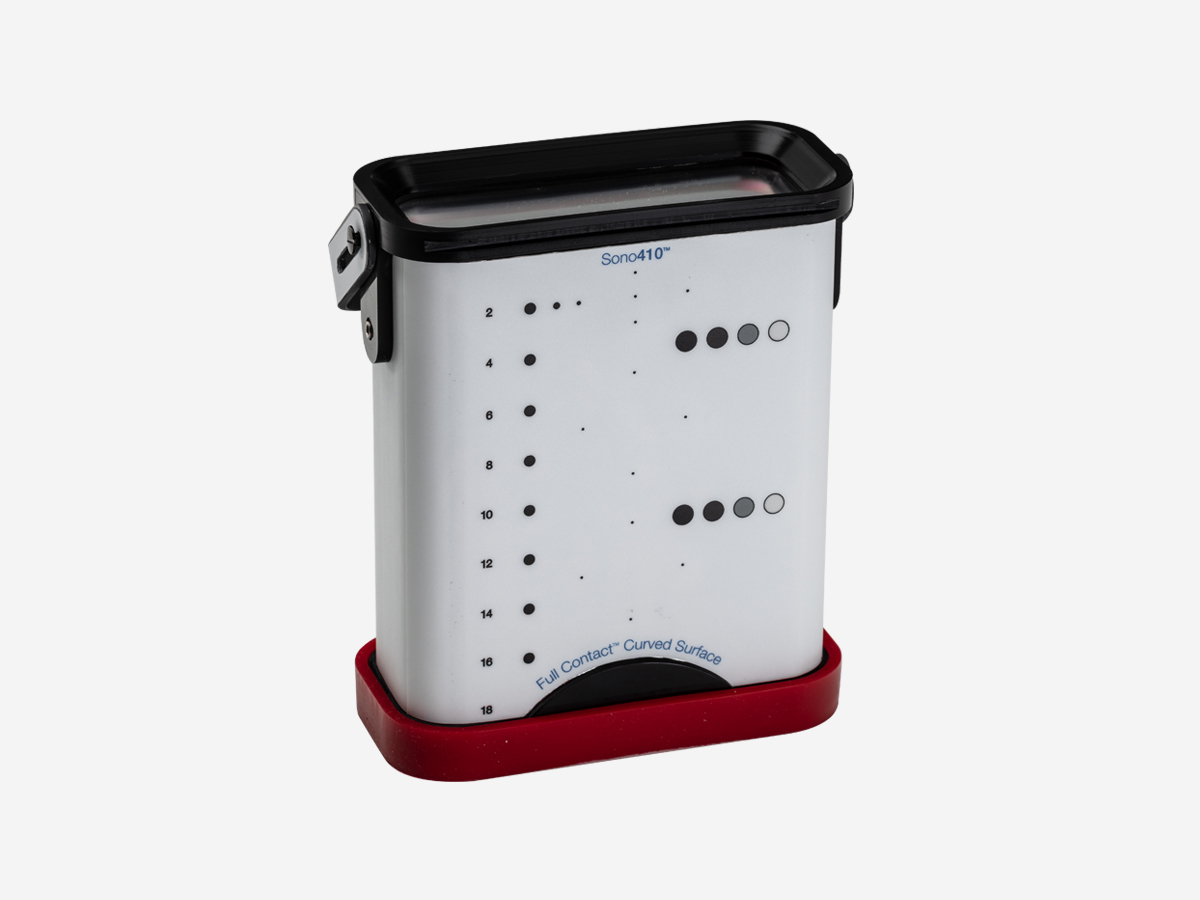

Sono410™ Full Contact™ Phantom

  • Meets the ACR guidelines for ultrasound QA, and includes two patented scanning surfaces — curved and flat —for precise performance and uniformity testing of convex and linear transducers
  • Patented curved surface improves coupling between convex transducers and phantom scanning window
  • Ideal for compliance testing of image quality of high-resolution Ultrasound Systems in breast care centers and diagnostic ultrasound departments

Learn more >


Rejuvenation Program

Our ultrasound rejuvenation program can extend the phantom’s life by 10 years. Rejuvenation replenishes fluid inside the phantom lost over time and certifies the phantom as comparable to new.

Sono Transducer Holder

The optional Transducer Holder enables placement of the transducer in a precise location for reproducible tests over time.

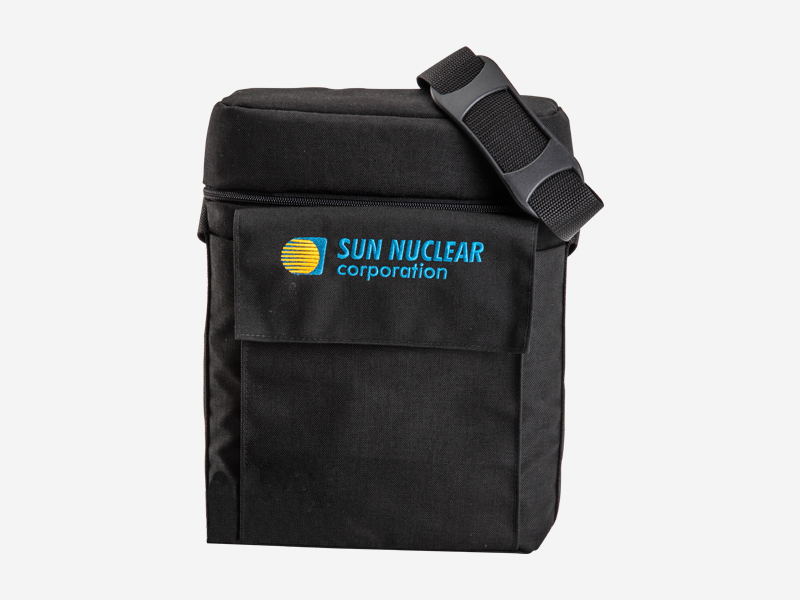

Travel Case

Lightweight, soft, custom carrying case includes a shoulder strap, and space for gel bottle and user guide.

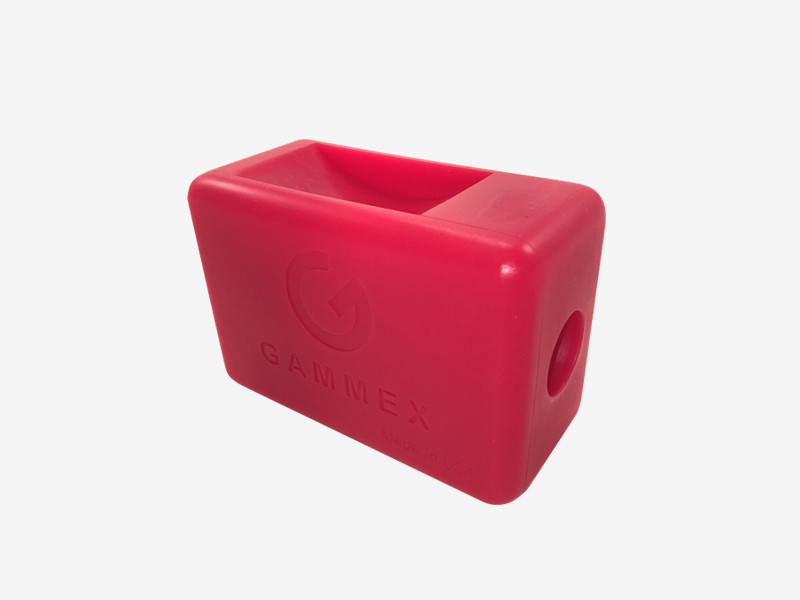

Transducer Evaluation

Optional SonoTE™ Phantom is a low-cost, high-value ultrasound transducer evaluation device. It provides uniformity tests for linear, convex and intercavity transducers.


Feature sono

Precisely spaced pin targets and fibers, as shown above for the Sono403 Multi-Purpose Phantoms, are intentionally placed to meet specifications. See our comparison document for diagrams of all the Sono Ultrasound Phantoms.



Specifications

HE Gel, included within each Sono Phantom

Attenuation Coefficient

0.5 or 0.7 dB/cm/MHz

Variation of Attenuation with Frequency

f1.08 at 0.5 dB/cm/MHz (represents healthy human liver tissue)
f1.1 at 0.7 dB/cm/MHz (represents fatty liver tissue)

HE Gel Freezing Point

< 0° C

HE Gel Melting Point

>100° C

Frequency Range

2 - 18 MHz

Speed of Sound

1540 m/s

More
All Sono Phantoms

Grey Scale Target Speed of Sound, where applicable

1540 +/- 10 m/s speed of sound (1.5 m/s/ºC temperature dependence)

Grey Scale Targets Contrast, where applicable

-6 dB, +6 dB, high scatter relative to background

Acoustic Measurements

Made at 4.5 MHz, 22º C

Case Material

Extruded ABS plastic

Sono403 Multi-Purpose Phantom

Cystic Targets Diameters & Placement

2, 4, 6, and 10 mm; 3, 7, 8, and 14 cm deep

Grey Scale Target Diameters & Placement

10 mm; 6 cm deep

Pin Targets Diameter & Placement

0.1 mm; 2 cm at 2 to 16 cm deep vertical spacing, and 3 cm at 2 and 12 cm deep horizontal spacing

Resolution Target Groups Depths

3, 8, and 14 cm deep

Weight

~2.8 kg (6 lbs. 5 oz)

Dimensions

23.2 x 8.25 x 18.5 cm (9.25 x 3.25 x 7.25 in.)

Pin Target Material

Nylon monofilament

Scanning Surface

Composite film

More
Sono404 Phantom

Cystic Targets Diameters & Placement

1, 2, 4 and 7 mm; 1, 3, 3.5 and 6 cm deep

Grey Scale Target Diameters & Placement

7 mm; 3 cm deep

Pin Targets Diameter & Placement

0.1 mm; 5 mm at 1–9 cm deep vertical spacing, and 10 mm at 1 and 5 cm deep horizontal spacing

Resolution Target Groups Depths

1, 3.5 and 6 cm deep

Weight

1.75 kg (3 lbs 13 oz.)

Dimensions

17 x 8.25 x 15.875 cm (6.75 x 3.25 x 6.25 in.)

Pin Target Material

Nylon monofilament

More
405 GSX Precision Resolution Phantom

Cystic Targets Diameters & Placement

2, 4 and 6 mm; 3, 8 and 14 cm deep

Grey Scale Target Diameters & Placement

9.5 x 9.5 x 13.4 mm; 6 cm deep

Pin Targets Diameter & Placements

0.1 mm; 2 cm at 2 to 16 cm deep vertical spacing, and 3 cm at 2 and 12 cm deep horizontal spacing

Resolution Target Groups Depth

3, 8, and 14 cm

Weight

~2.8 kg (6 lbs. 5 oz)

Dimensions

23.2 x 8.25 x 18.5 cm (9.25 x 3.25 x 7.25 in.)

Pin Target Material

Nylon monofilament

Scanning Surface

Composite film

More
Sono408 Spherical Lesion Phantom

Cystic Targets Diameters & Placement

2 and 4 mm; 2 mm at 0.5 to 10.5 cm deep and 4 mm at 0.5 to 16 cm deep

Weight

1.75 kg (3 lbs 13 oz.)

Dimensions

17 x 8.25 x 15.875 cm (6.75 x 3.25 x 6.25 in.)

Scanning Surface

Composite film

Sono410 Full Contact Phantom

Cystic Targets Diameters & Placement

1, 2 and 4 mm; 2, 4, 6, 8, 10, 12, 14 and 16 cm deep

Grey Scale Target Diameters & Placement

8 mm; 4 and 11 cm deep

String Targets Diameter & Placement

0.1 mm; 1, 2 and 4 cm from 1 to 15 cm deep vertical spacing; 2 cm at 2 cm deep, 4 cm at 7 and 13 cm deep horizontal spacing

Weight

~2.8 kg (6 lbs. 5 oz)

Dimensions

21.8 x 9 x 19.2 cm (8.6 x 3.5 x 7.5 in.)

String Target Material

Nylon monofilament

More
SonoTE Phantom

Material

Silicone base

Dimensions (L/W/H)

11.5 x 5.7 x 7.5 cm (4.63 x 2.25 x 3 in)

Weight

580 +/- 5 g (1 lb. 4 oz.)
