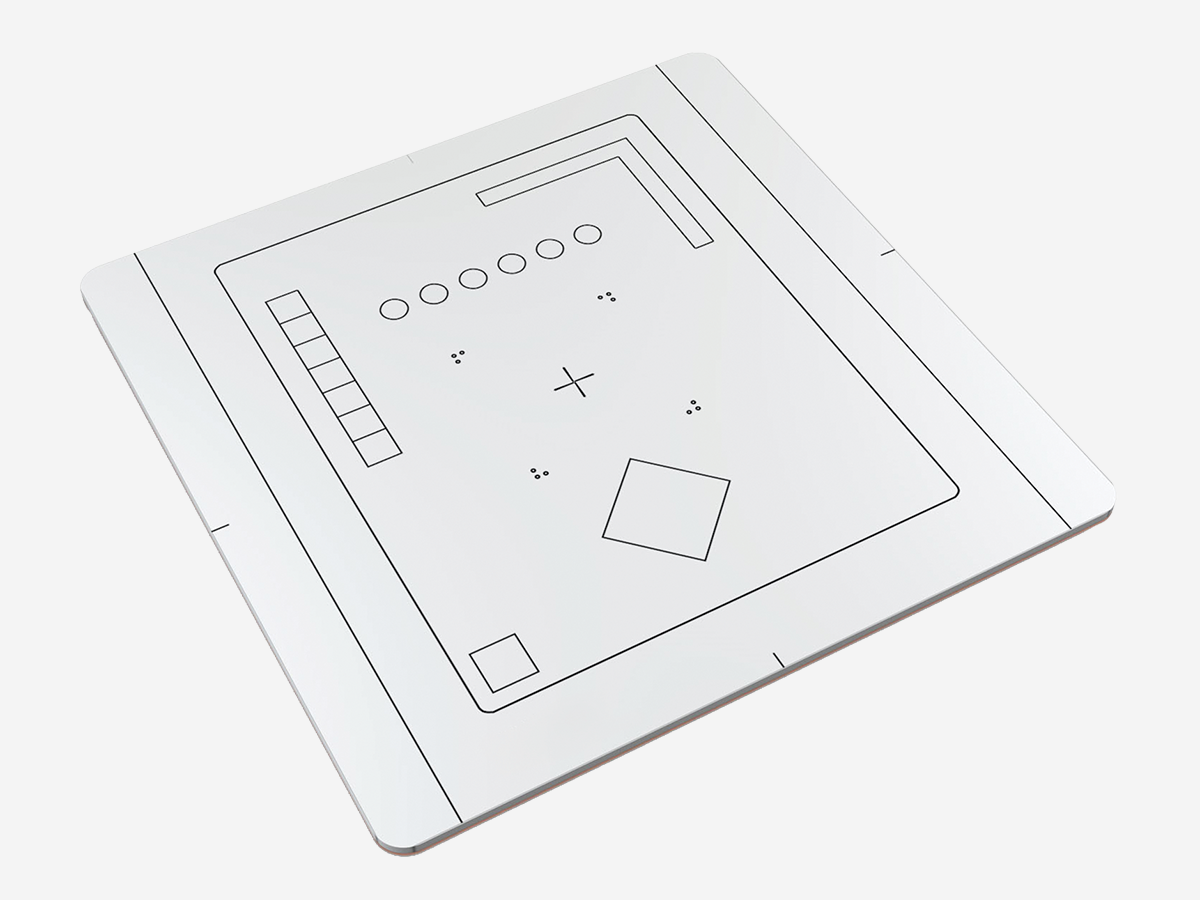

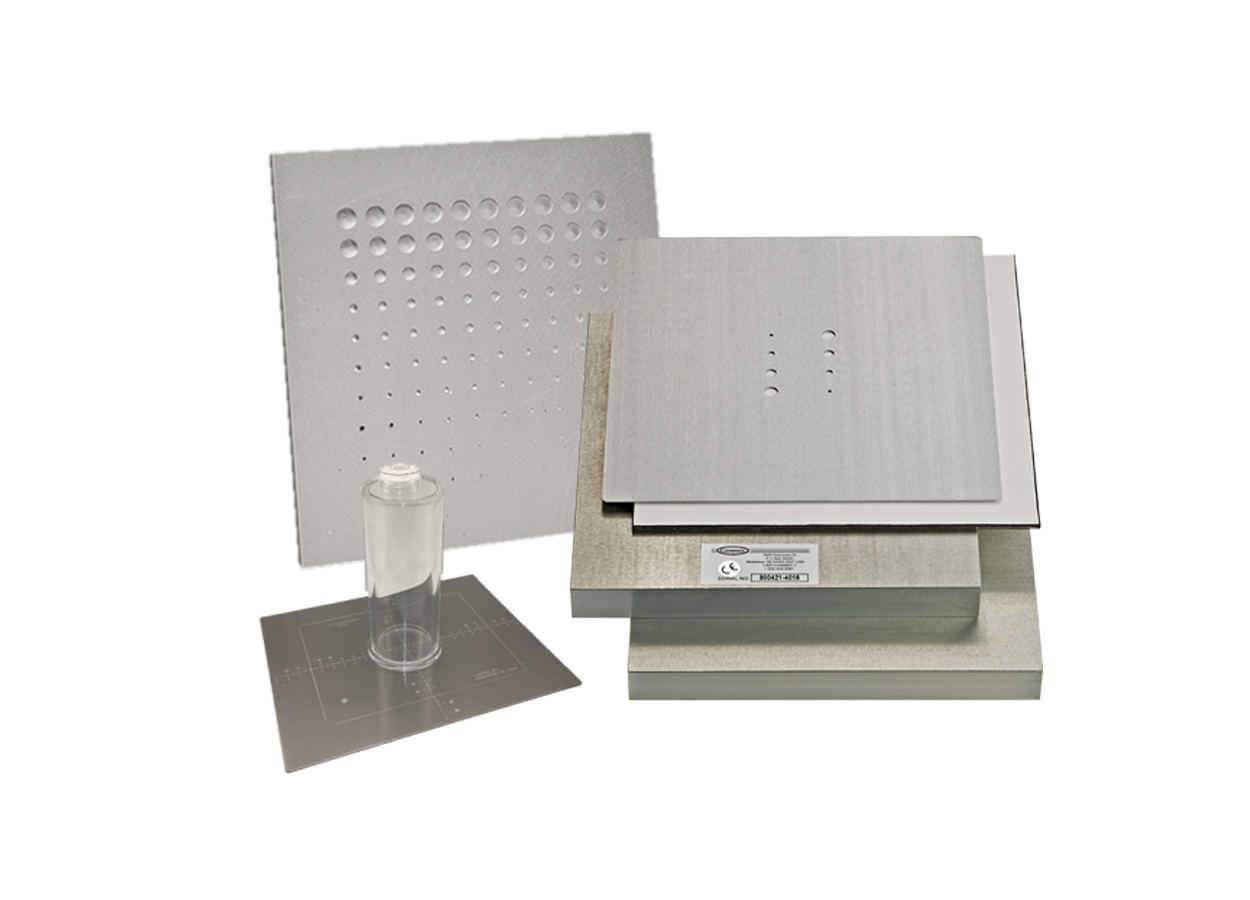

Perform quality control testing of your Digital Radiography (DR), Computed Radiography (CR) and Fluoroscopy X-ray systems with ease. Comply with local, state, federal, and governing bodies for digital and traditional analog radiographic imaging technologies.


Beam Geometry & Alignment Testing

  • Beam Alignment Test Tool evaluates X-ray field congruence and ensures accurate X-ray beam alignment
  • Collimator Alignment Test Tool consists of an etched stainless steel baseplate to evaluate collimator light field congruence
  • Grid Alignment Test Tool tests proper grid alignment with respect to the central ray of the X-ray tube
  • Light Field Ruler Set measures the coincidence of the light and radiation fields of analog or digital flat plate/film X-ray units, including mammography systems

Dose & Exposure Rate Measurements

  • Fluoroscopic Dose Rate and Low Contrast Resolution Test Tool Kit measures the automatic brightness stabilizer, maximum entrance exposure and the photo-timer performance. When used with the High Contrast Resolution tool, this ensures an optimized fluoroscopic system.
  • Lead Blocker – an additional Lead Blocker is available for the Fluoroscopic Dose Rate and Low Contrast Resolution Test Tool Kit.

Beam Quality & Half-Value Layer

  • The Half Value Layer (HVL) Attenuator Set determines the HVL of the X-ray beam to specify the quality of the X-ray beam. Made of 1100 Alloy Aluminum (>99.00%), the set contains 9 sheets of various thicknesses ranging from 0.1 to 2.0 mm.

Image Quality (Contrast & Resolution)

  • Contrast Detail Tool monitors performance and determines contrast detail characteristics of radiographic and fluoroscopic systems
  • High Contrast Resolution Test Tool measure high contrast resolution of radiographic and fluoroscopic systems. Each tool (sold separately) includes eight patterns of copper mesh for systems with resolutions from 60 to 150 mesh and 16 to 60 mesh respectively. Mesh values are labeled with lead for easy identification.

Image Quality (Contrast & Resolution) continued

  • Ultra Star Test Pattern (1-360°) for determining focal spot size through observation of regions of blurring
  • Focal Spot Test Tool for assessing focal spot size. A range of bar patterns within an acrylic cylinder allow for the visually observed limiting resolution to be easily converted into an effective focal spot size.
  • Anthropomorphic Neo-Natal Chest Phantom represents the transmission characteristics, histogram, physical size and structure of a 1-2 kg neonate. Includes clinically relevant image quality challenges for resolution and noise in the form of a lung with simulated pneumothorax with pleural thickening, and a lung with simulated hyaline membrane disease.

Complete your DR, CR, Fluoro toolkit


Resources


Specifications

Beam Alignment QC Tool

Construction

Acrylic Cylinder

Height

16 cm (6.3 in)

Diameter

7 cm (2.8 in)

Weight

260 g (9.2 oz.)

Construction

Acrylic Cylinder

Warranty

5 Years

More
Collimator Alignment QC Tool

Construction

Etched Stainless Steel

Dimensions

20.0 x 25.0 cm (8.0 x 10.0 in)

Weight

200 g (6.2 oz.)

Warranty

5 Years

Grid Alignment Test Tool

Construction

Three Lead Blockers with Precise Hole Locations

Dimensions

9 x 23.5 cm (3.5 x 9 in) - one large, two small

Weight

0.7 kg (1.5 lbs)

Warranty

1 Year

Light Field Ruler Set

Size/Range of Light Field to Measure

2 x 2 cm --> 25 x 30 cm with markings for 10 x 10, 15 x 15 & 20 x 20 cm and 25 x 25 cm

Size/Range of Circular Fields

1 cm – 25 cm diameter

Read Out Accuracy

0.5 mm

Dimensions

13.75 x 11 x 1/8 inches thick

Weight

938 g (2 lbs.)

Warranty

1 Year

More
Lead Blocker 0.3 x 18 x 18 cm, 3Lb

Construction

Lead

Dimensions

0.3 x 18 x 18cm

Weight

3 lbs

Warranty

5 Years

Fluoroscopic Dose Rate and Low Contrast Resolution Test Tool Kit (151)

Construction

2 Aluminum Blocks, 1 Lead Blocker, 1 Aluminum Resolution Plate

Dimensions

18 x 18 x 4.5 cm (7 x 7 x 1.8 in)

Weight

4 kg (8.8 lbs)

Warranty

5 Years

High Contrast Resolution Test Tool: (141H) – High-Res, 60-150 Mesh; (141) – Standard, 16-60 Mesh

Geometric Progression

2 1/3

Construction

White Plastic (outside)

Wire Mesh Patterns (inside)

8 - 60 to 150 mesh (141H High-Res)
8 - 16 to 60 mesh (141 Standard)

Dimensions

18 x 18 x 1 cm (7 x 7 x 0.4 in)

Weight

113 g (4 oz)

Warranty

1 Year

More
Ultra Star Test Pattern, 1-360º

Lead Foil Thickness

0.05 mm

Diameter

55 mm

Angle of Single Line within a Sector

0.5°

Number and Size of Patterned Sector

1-360°

Focal Spot Size Measured

0.1-0.3 mm

Warranty

5 Years

More
Focal Spot Test Tool (112B)

Construction

Six-inch acrylic cylinder with a 12-group bar pattern target mounted on top

Dimensions

0.84 to 5.66 lp/mm

Warranty

5 Years

Anthropomorphic Neo-Natal Chest Phantom

Size

Approx. 100 x 100 x 54 mm

Weight

Approx. 500 grams

Composition

Tissue Equivalent Materials: Air, Muscle, Normal Lung, Hyaline Membrane Lung, Bone

Warranty

5 Years
