Machine QA SolutionsWhen using motion management techniques for delivery of radiotherapy, appropriate QA tools are needed to ensure safe and effective treatment. The Enhanced Dynamic Platform enables movement of compatible phantoms with sub-millimeter accuracy and reproducibility, easing QA and boosting clinical confidence for advanced tumor treatments.

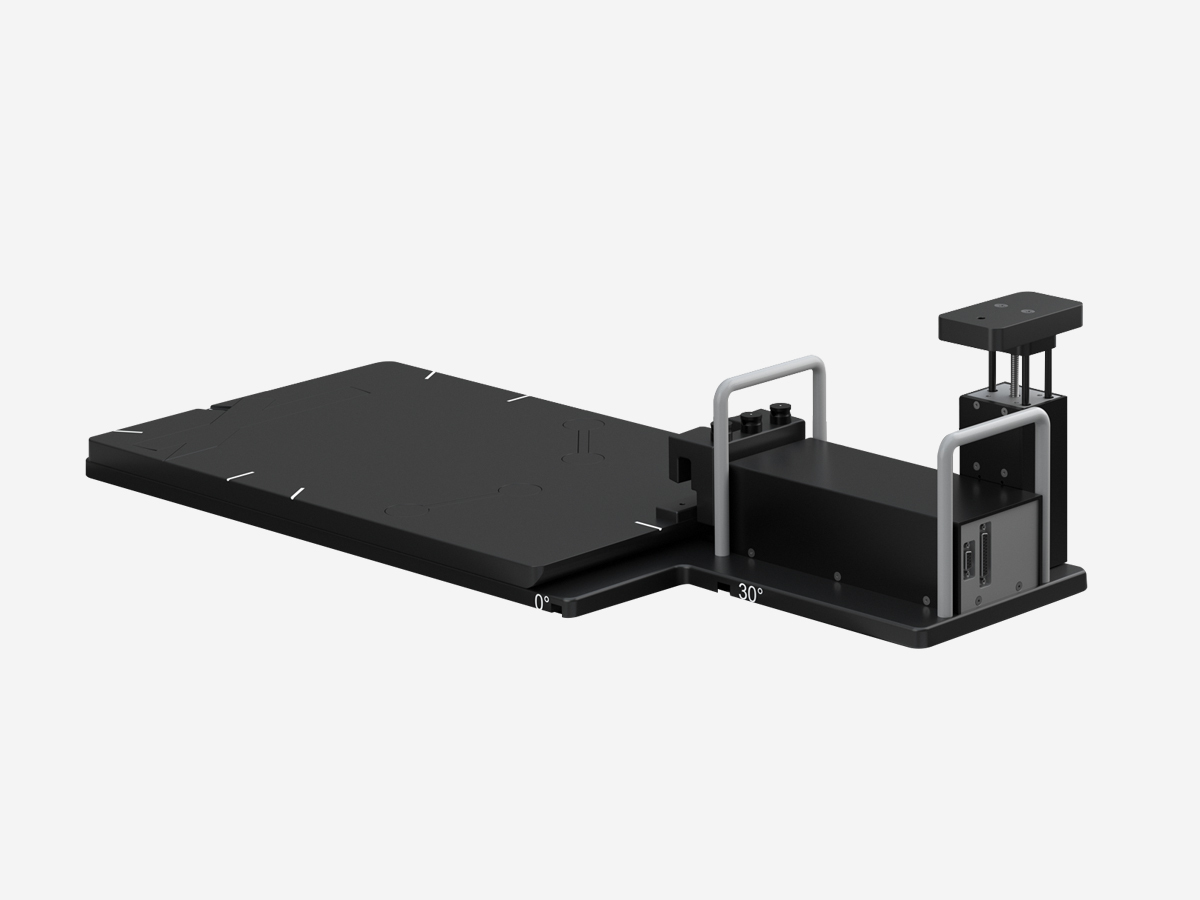

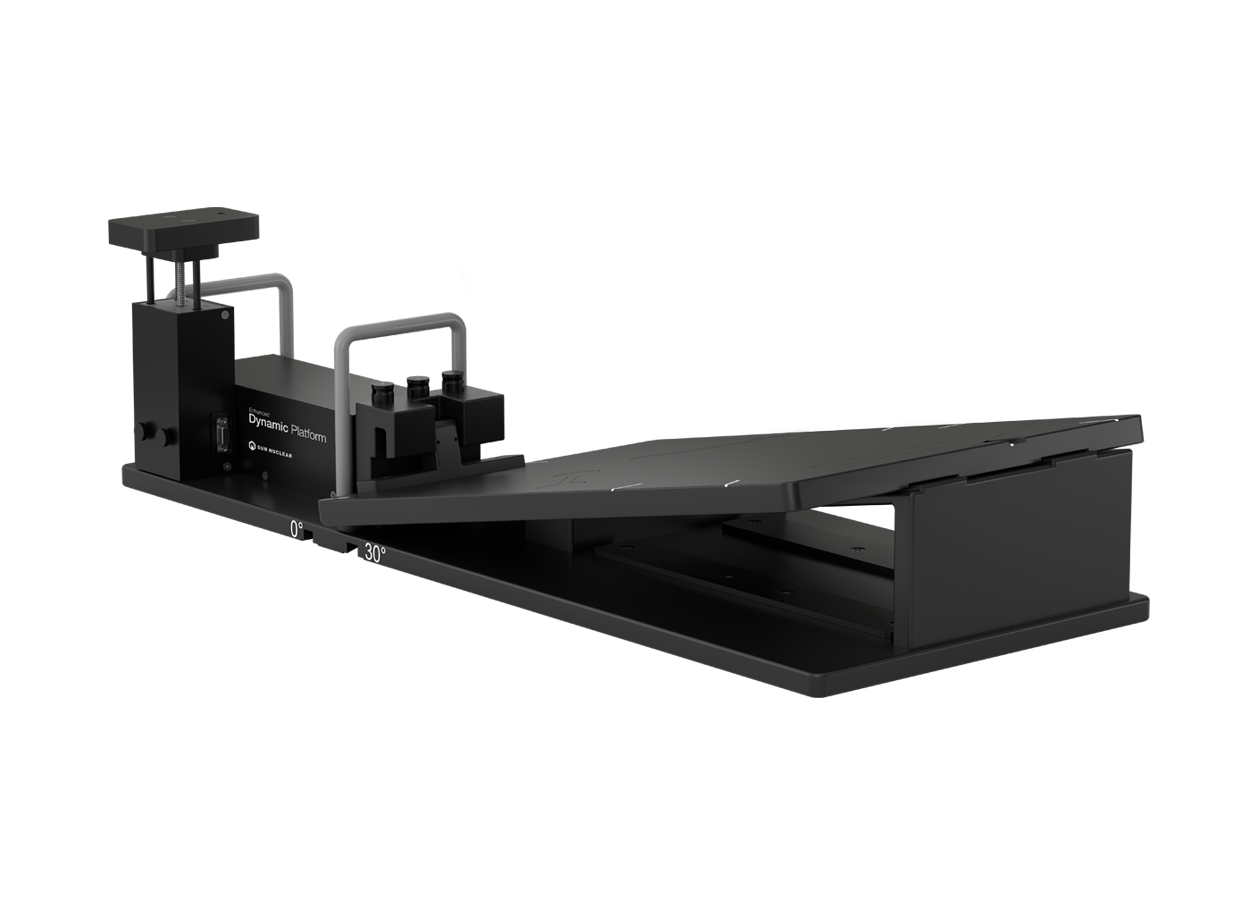

The Enhanced Dynamic Platform builds upon the Dynamic Platform, with sub-millimeter accuracy for 3D Motion QA of systems that perform tumor tracking and gating. It allows for precisely controlled inferior-superior motion and features the ability to create an inclined plane for compatible phantom motion in the posterior-anterior direction.
Setup Options
Easily set up for 1D, 2D or 3D motion QA, including:
- Inferior-superior motion up to +/- 25mm (50 mm total) for applicable phantoms up to 70 lb.
- An 11.3° inclined plane provides +/- 5.0 mm (10 mm total) of motion in posterior-anterior direction (for applicable phantoms up to 50 lb.)
- 30° rotation about the linac couch provides +/- 12.5 mm (25 mm total) of lateral motion
- Surrogate platform simulates posterior-anterior chest wall motion of +/-25mm (50mm total)
Phantom & Software Integration
The Enhanced Dynamic Platform integrates with the Sun Nuclear Tomo-Phantom HE (“Cheese Phantom”), supporting the Accuray acceptance tests procedure (ATP), as handled by the legacy Dynamic Platform.
Motion Control Software enables different cycles, amplitudes, and waveforms – as well as the import of patient-specific respiratory waveforms.
Resources
Downloads
Specifications
Dimensions (cm) |
92.8(L) x 37.5(W) x 27.5(H) (for all motions at home position) |
Weight (kg) |
18.4 |
Position Accuracy (mm) |
Position Accuracy ( -/+0.25 mm) |
Maximum Amplitude Inf/Sup (mm) |
+/- 25.0 (50 total) |
Maximum Amplitude Lateral (mm) |
+/- 12.5 (25 total) |
Maximum Amplitude Pos/Ant (mm) |
+/- 5.0 (10 total) |
Maximum Amplitude Surrogate (mm) |
+/- 25.0 (50 total) |
Editable Built-In Waveforms |
sin(t), 1-2cos4(t), 1-2cos6(t), sawtooth, sharkfin |
Power |
110-250 VAC, 50/60 Hz |
