1D SCANNER™ is an efficient water tank for performing point dose and PDD dosimetry. Use it for annual linac calibration or monthly constancy checks.


Simple, Efficient Water Scanning
1D SCANNER enables dosimetry measurements in water, including output factors, dose calibrations, annual, and routine QA. Collect PDD curves with optional SNC Dosimetry™ software and PC Electrometer™.

Easy, Reproducible Setup
Setup is simple with a single power and data cable connection. Plus, a water surface detection feature automatically sets the dosimetry detector at the water surface, removing subjectivity. Control the tank in-room using the pendant or outside of the room using software.


Meet TG-51 requirements with ease.


Intuitive Software

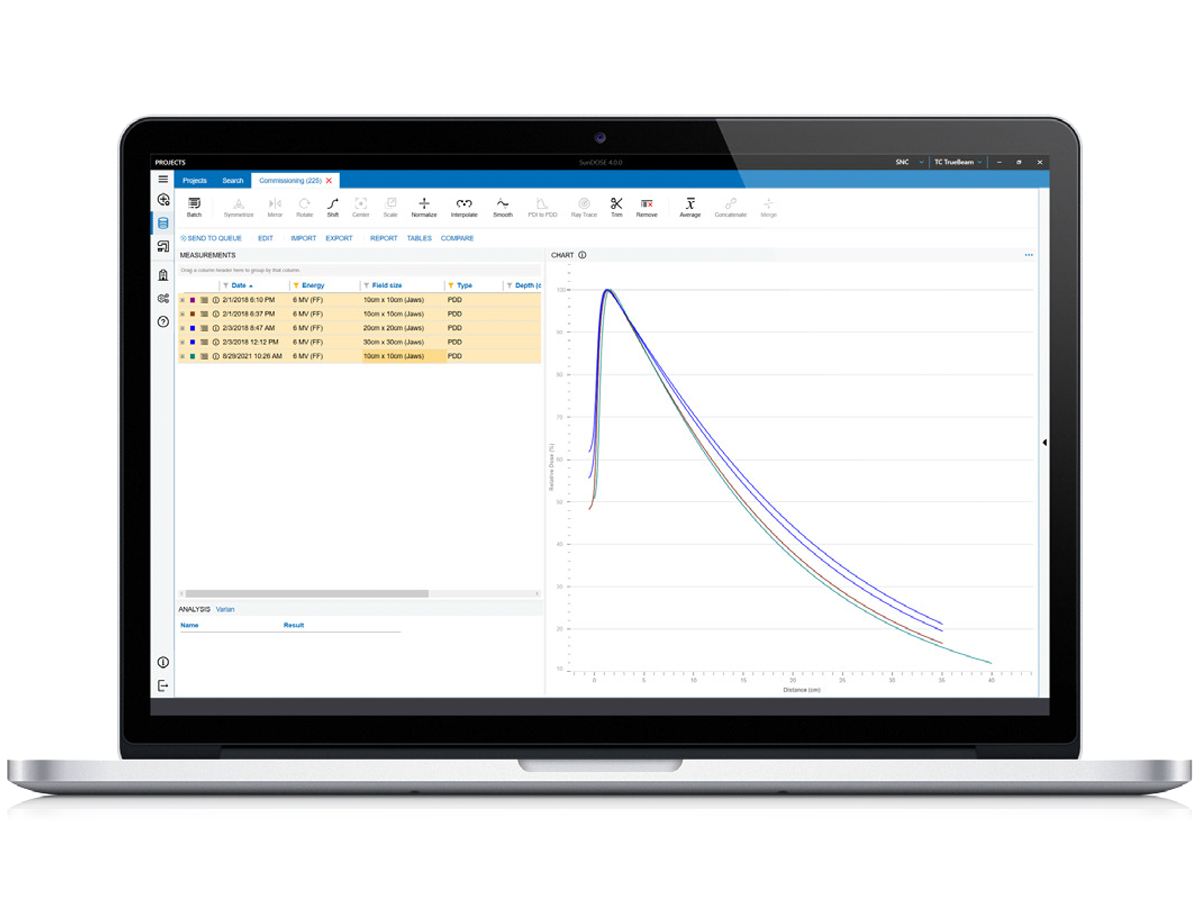

SNC Dosimetry™ complements 1D SCANNER with powerful analysis and smart features for enhanced efficiency.

  • Queues and projects for organizing and executing groups of scans, and tracking annual QA and commissioning
  • Multi-scan comparison tool for 1-click quantitative analysis across data sets
  • Searchable database for easy access to data with the ability to share data among users
  • Processing layers for insights into each function along the scanning process, and ability to revert to earlier unprocessed data

TG-51 Compliance

Meet AAPM Task Group 51 requirements for reference dosimetry with a water tank.

Detector Compatibility

Works with SNC125c™, SNC350p™, SNC600c™, and EDGE Detector™

Detector Holders

Farmer type, universal, vertical and reference detector holder included

Electrometer Scanning Mode

Capture point measurements outside queue interface with a PC Electrometer™, allowing increased efficiency and data management


We offer comprehensive packages for TG-51 & Varian Medical Systems® Halcyon™ System Acceptance.


*Varian Medical Systems® is a registered trademark. Sun Nuclear Corporation is not affiliated with or sponsored by Varian Medical Systems, Inc.



    Specifications

    Device Specifications

    Inner Dimensions L/W/H (cm)

    35.0 x 39.0 x 36.2

    Exterior Dimensions L/W/H (cm)

    37.6 x 40.6 x 36.8

    Interior Volume

    50 liters at 35 cm depth

    Weight empty with arm (kg)

    10.4

    Arm positioning increments (cm)

    0.01, 0.1, 1.0 & 10.0

    Arm positioning accuracy (cm)

    ± 0.01

    Scan depth maximum (cm)

    30.0

    Operating system

    Windows 2000, XP, Vista, or 7

    Number of connection cables

    Single power/data cable
