Laser Alignment SolutionsThe SIM+ Pro remote-adjustable moveable laser system is designed from the ground up to support your PET/CT simulation workflow. Unmatched precision and accuracy provide enhanced confidence for patient safety while remote adjustment provides extra assurance and ease of use.
Accuracy at the Patient
SIM+ Pro offers accuracy at the patient of +/- 0.5 mm. Laser line widths of ≤0.5 mm for all colors, and industry-leading lengths of ≥4 meters at 3 meters, offer precision and flexibility for your workflow.
Automation & Workflow Optimization

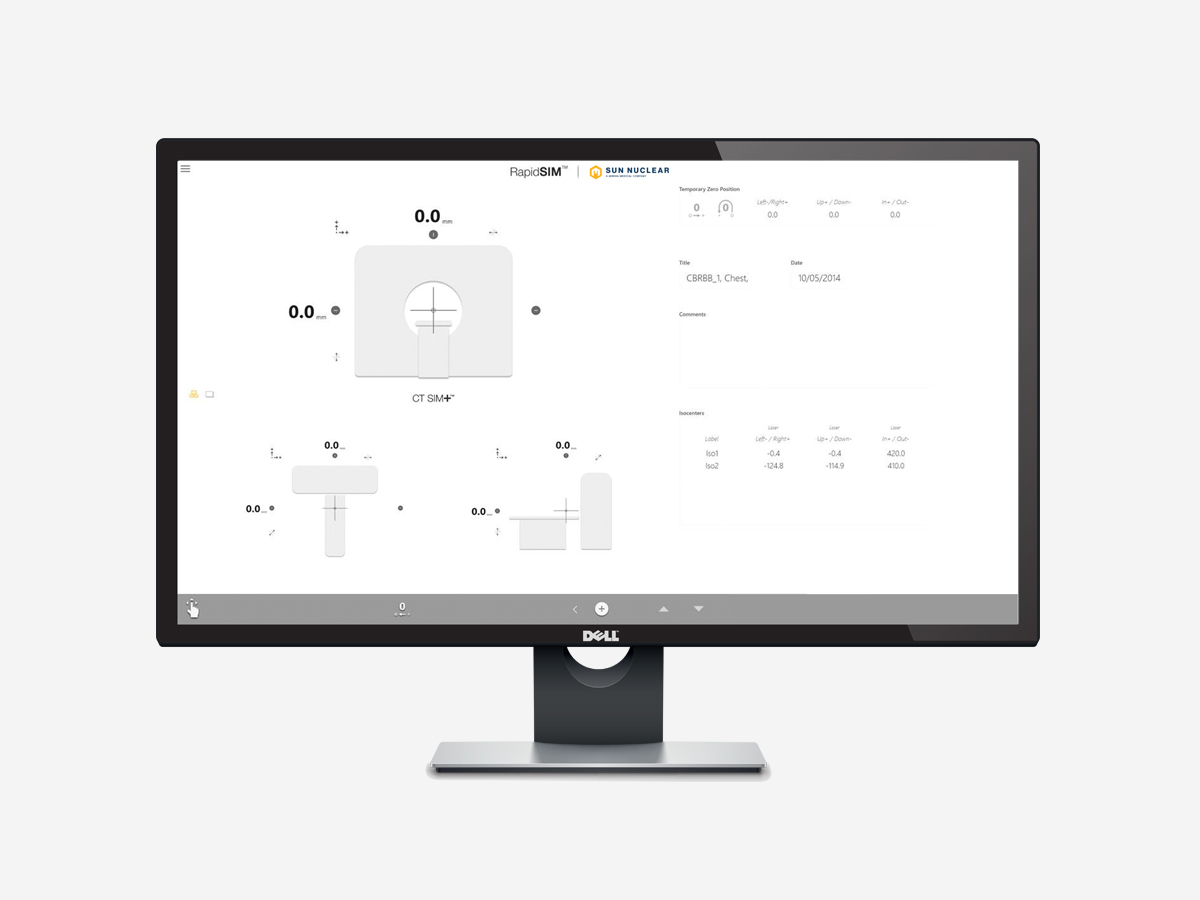

Included RapidSIM™ Software allows seamless laser connectivity to the CT simulation package or TPS and is compatible with all major third-party systems. RapidSIM reads coordinates and directs lasers for accurate identification of the patient marking and treatment location.
Meet TG-66 Requirements
SIM+ Pro supports testing as required by AAPM Task Group 66.
Flexible Levels of Software Automation
RapidSIM supports varying levels of automation based upon your needs:
- IsoDRIVE™ mode retrieves TPS coordinates and automatically moves the lasers into position. The IsoLOCK™ feature provides visual confirmation the lasers are at the requested position within 0.5 mm.
- DICOM mode allows single point selection, driven by the user.
- Manual mode allows the user to manually enter coordinate information.
See how SIM+ Pro seamlessly fits into your workflow.
Wall and ceiling configuration setup maximizes space, with lasers tucked away safely from carts and stretchers. Shown above in a 3-arm configuration.

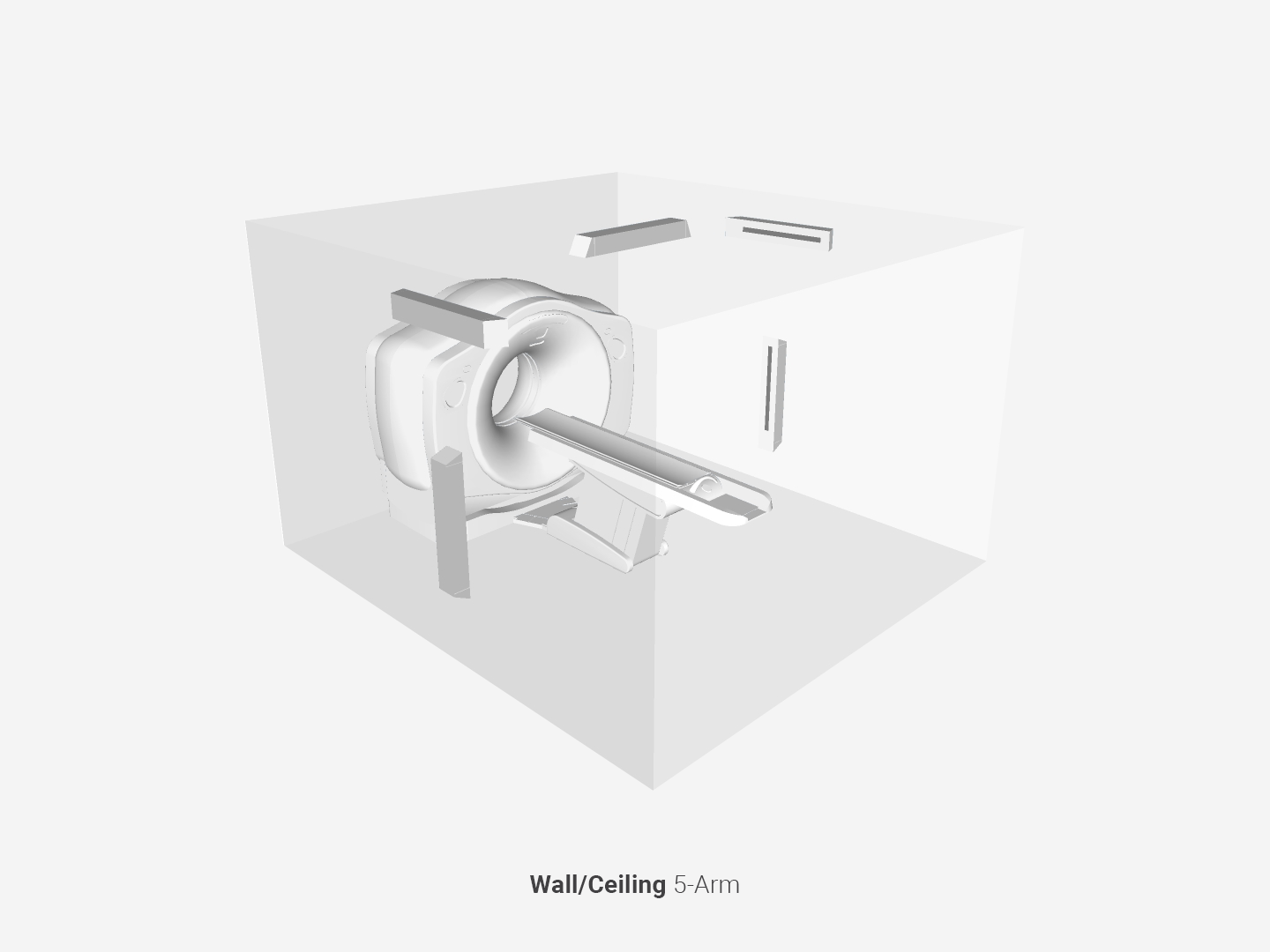

Wall and ceiling configuration setup maximizes space, with lasers tucked away safely from carts and stretchers. Shown above in a 5-arm configuration.

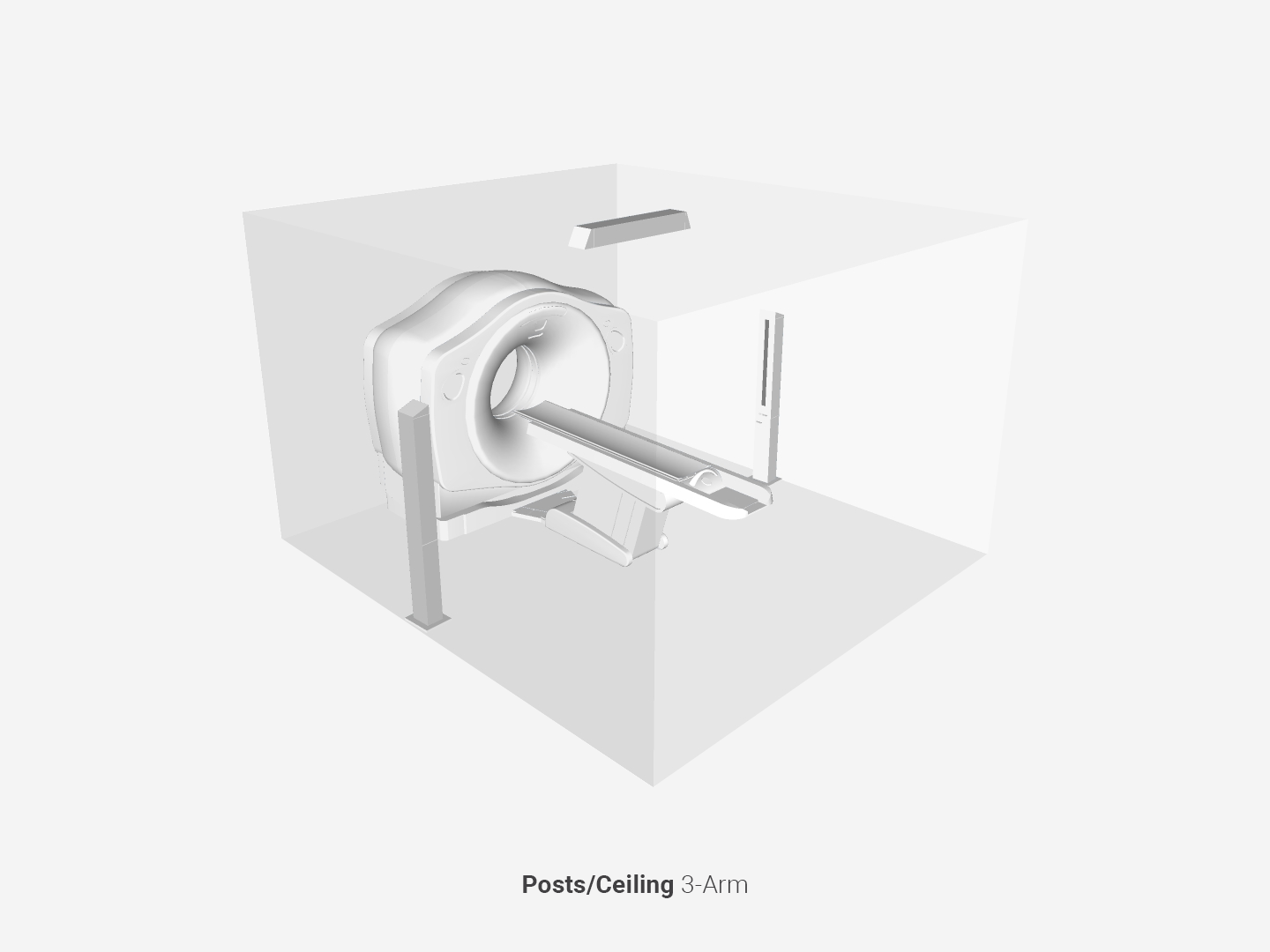

Posts and ceiling configuration includes floor-mounted lateral lasers constructed of extruded aluminum for durability. Ceiling laser installed to uni-strut or other solid structure. Shown above in a 3-arm configuration.

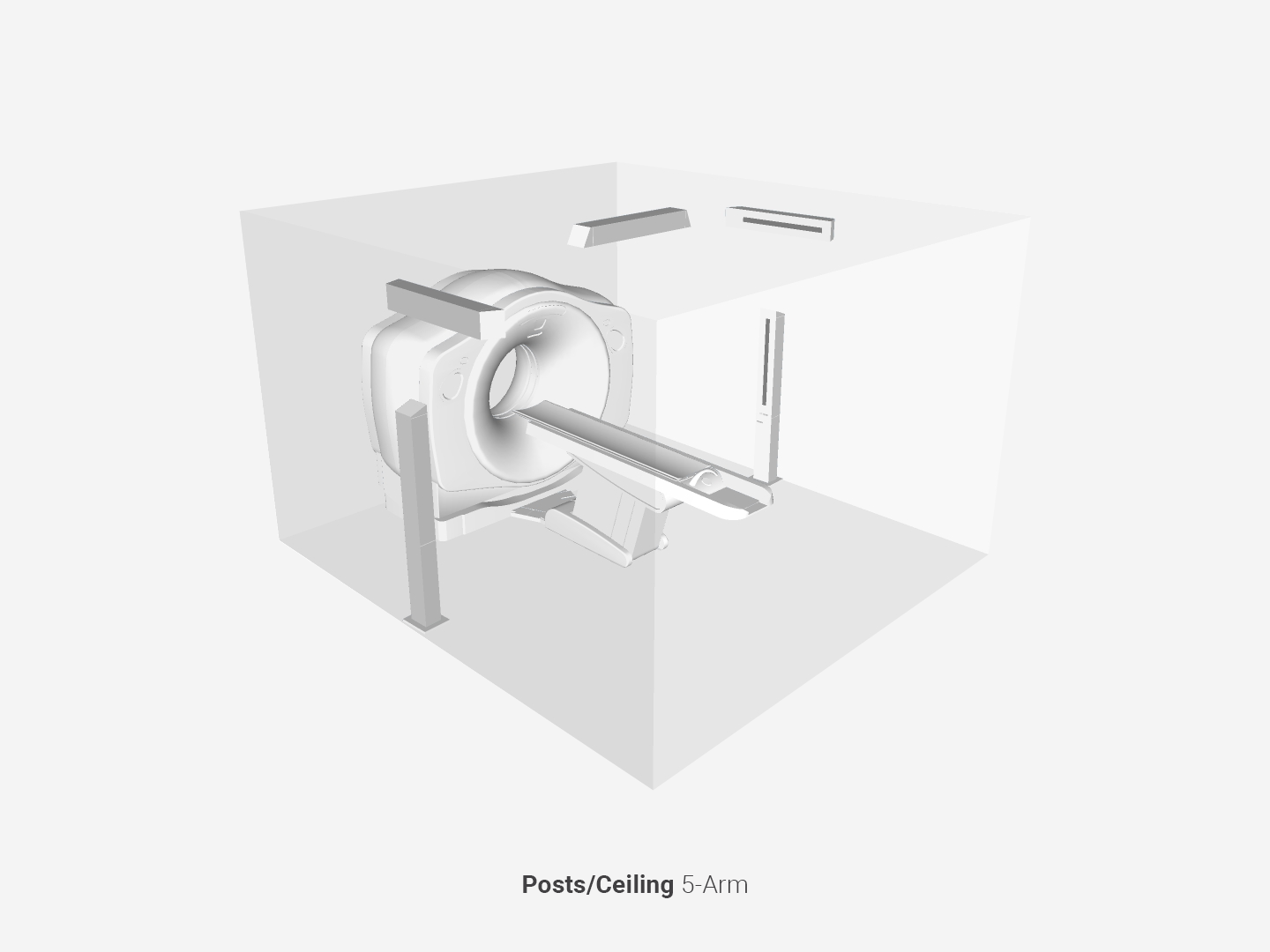

Posts and ceiling configuration includes floor-mounted lateral lasers constructed of extruded aluminum for durability. Ceiling laser installed to uni-strut or other solid structure. Shown above in a 5-arm configuration.

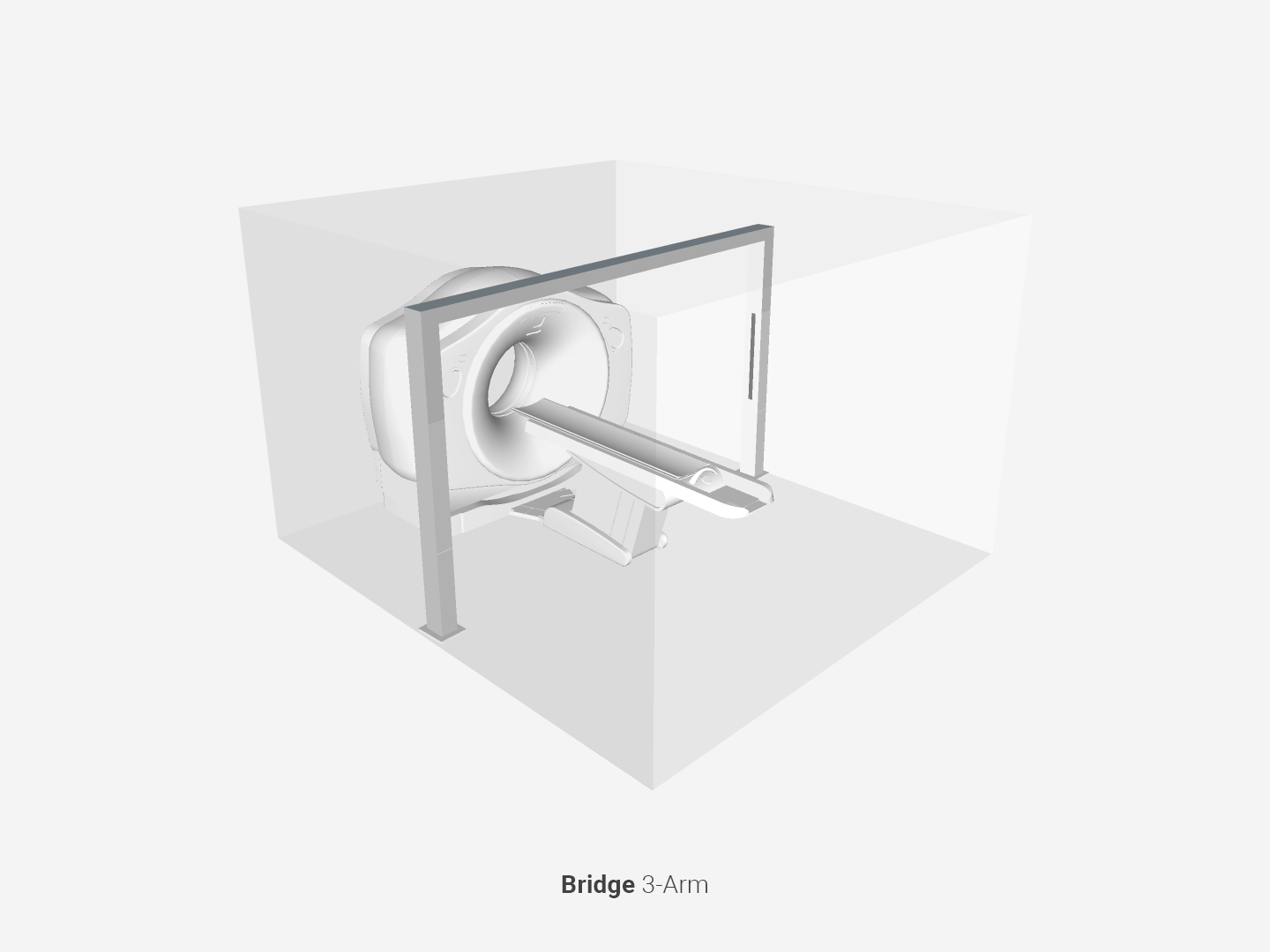

Bridge 3-arm configuration, constructed of extruded aluminum for durability, can be easily installed without renovations. Multiple cable entry points offer easy management.

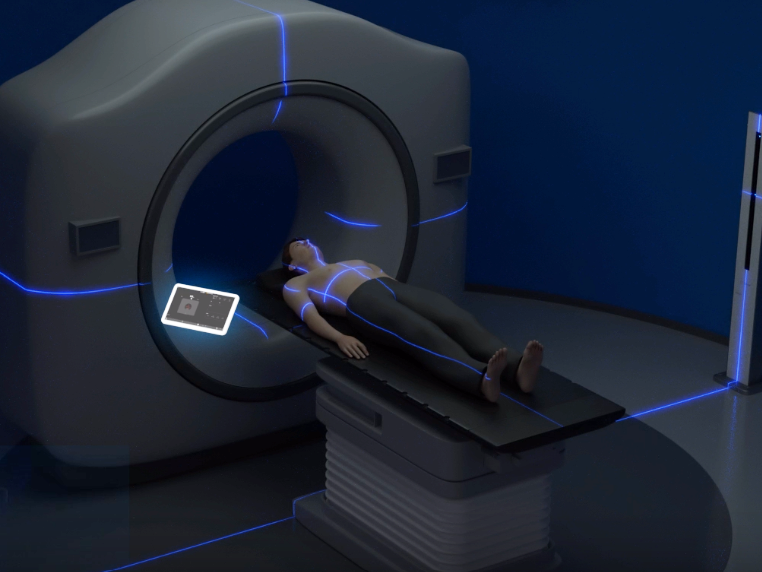

A predictable patient marking workflow is achievable with SIM+ Pro.

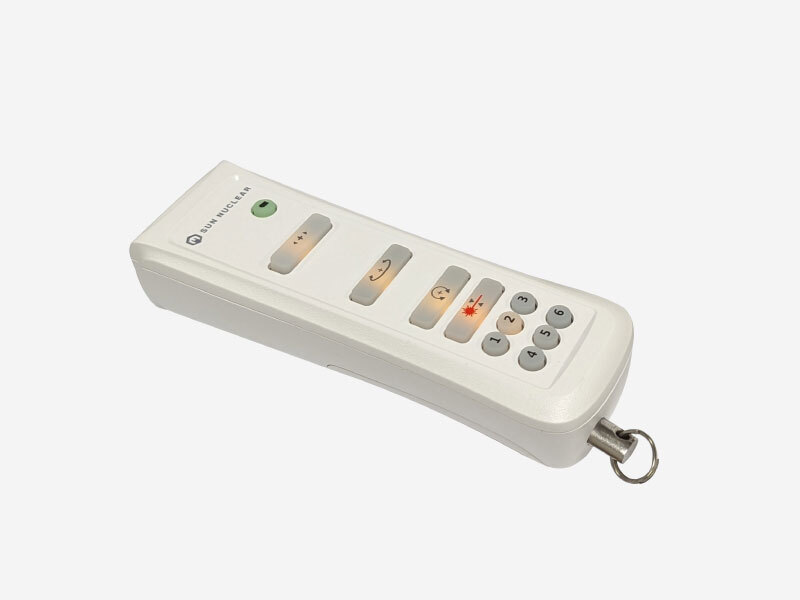

Bluetooth-Enabled Remote
Enables fine motor changes (coronal, sagittal, transverse, pitch, yaw, roll and focus) for easy workflow
Three Color Options
Red, green, or blue laser wavelengths are available.

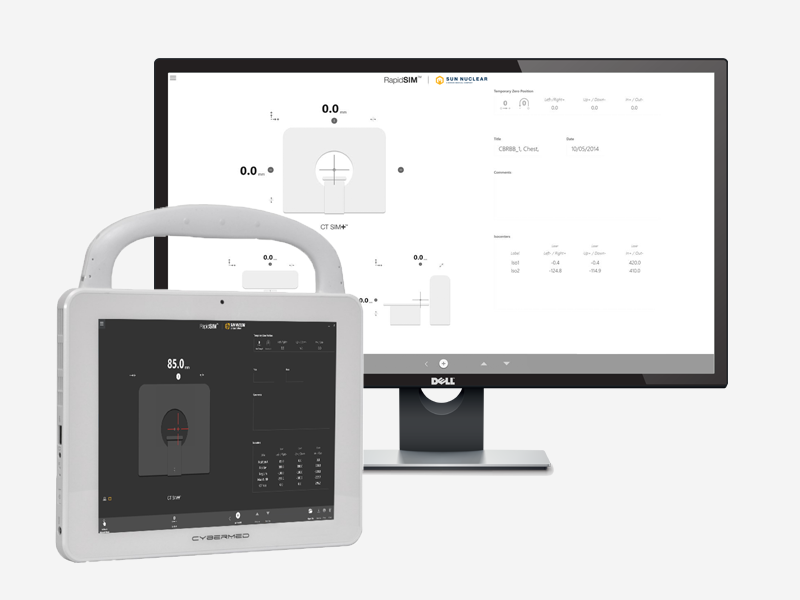

Workflow-Compatible Software
A touchscreen monitor and handheld tablet create redundancy and ease of workflow when moving in and out of the room.

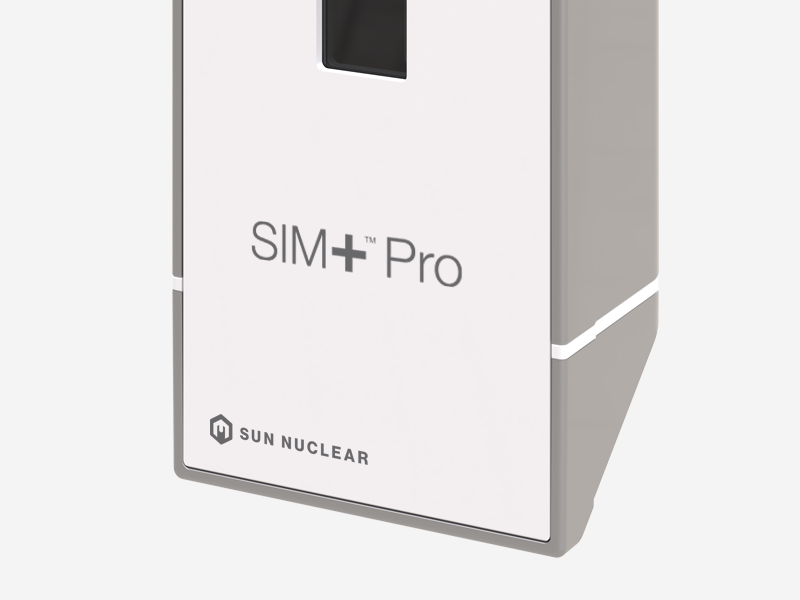

Smart, Reliable Housing
Integrated anti-reflection window and surfaces eliminate refraction or reflections, and reinforced aluminum body enables easy installation and reliability.

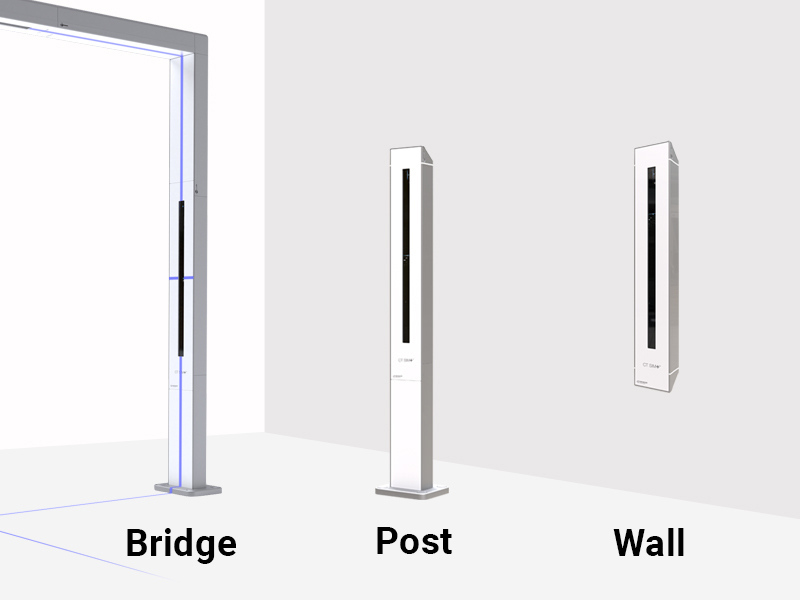

Configuration Flexibility
3-arm or 5-arm configurations are available for wall/ceiling, posts, and bridge, or custom configurations can be accommodated based on room size and layout.
Best-in-Class Specifications
- ±0.5 mm accuracy, at 3 m
- ≤0.5 mm line width, at 4 m
- ≥4 m line length, at 3 m
The SIM+ Pro system is not available for sale in all markets. CE mark pending.
Looking for CT SIM+? The legacy CT SIM+ is still available in select markets.
Resources
Clinical / Technical Notes
Downloads
Specifications
Dimensions |
L x W x H wall/ceiling arm (mm): Post arm (mm): |
1191 x 201 x 119 1770 x 201 x 119 |
Weight/Mass |
Wall/ceiling arm: Post arm: |
45 lbs (21 kg) 77 lbs (35 kg) |
Environmental |
Operating Temperature (°C): Operating Humidity: |
15 - 30 10 - 95% relative humidity, non-condensing |
Power Supply |
External Power Supply Box: Voltage Output to Laser Arm (VDC): |
10/240 VAC, 50/60 Hz auto-select 24 |
Travel Range (mm): |
700 |
Travel Velocity (mm/s): |
Up to 200 |
Accuracy of Positioning (mm): |
<0.1 |
Projected Accuracy (mm): |
±0.5 at the patient (3.0 m) |
Laser Technology: |
Diode |
Laser class: |
2 |
Power (mW): |
<1.0 |
Colors / Wavelength (nm): |
Red 635 Green 515 Blue 450 |
Focus Range: |
Up to 6 m |
Line Width: |
≤0.5 mm for all colors @ 4 m |
Line Length: |
≥4 meter @ 3 m |
| MoreLess | |
Power: |
3 VDC, 2 AA Alkaline |
Communication: |
Bluetooth BLE |
Adjustment Speeds: |
Slow (precision) / Fast (coarse) |
Tether: |
Wrist lanyard |
Backlight: |
All buttons |
Locator: |
“Find remote” option on each laser |
| MoreLess | |
Application: |
RapidSIM 4.x |
Operating System: |
Windows 10 (or greater) |
Communication: |
WiFi (multi-band) |
Certifications |
Complies with Center for Devices and Radiological Health regulations 21 CFR 1040 for Class II lasers and all CE requirements. Certified to: IEC 60601 (Safety/EMC); IEC 60825-1 (Laser). 510(k) clearance (K152303). ISO13485 certified medical device manufacturer. |
