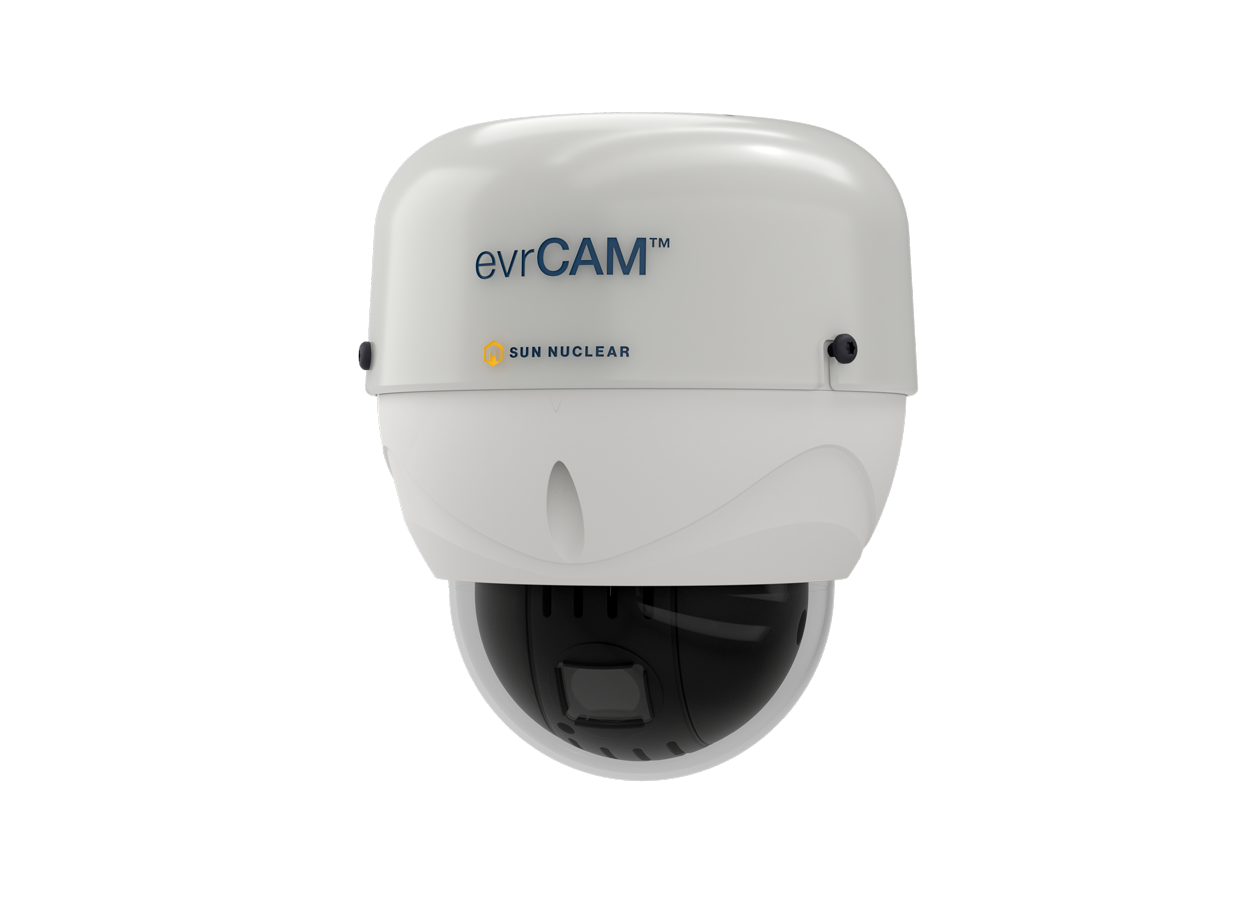

Patient QA SolutionsEngineered to endure radiation environments, evrCAM™ delivers sharp, high-resolution video with a service life up to three times longer than standard CCTV systems.
Monitor Patients with Confidence
Designed for vaults using either analog (Varian Medical Systems®) or digital (Elekta®) camera solutions, evrCAM provides clinicians with sharp visuals during critical treatment moments — eliminating pixelated and damaged images and enhancing patient observation. Built to withstand cumulative radiation exposure up to 200 Gy and maintain performance in low-light environments, evrCAM integrates easily into existing infrastructure.
Easy Integration into Analog and Digital Infrastructures
evrCAM is easy to install, simple to operate, and built to work with both analog and digital systems. It offers a flexible solution for a range of clinical environments.

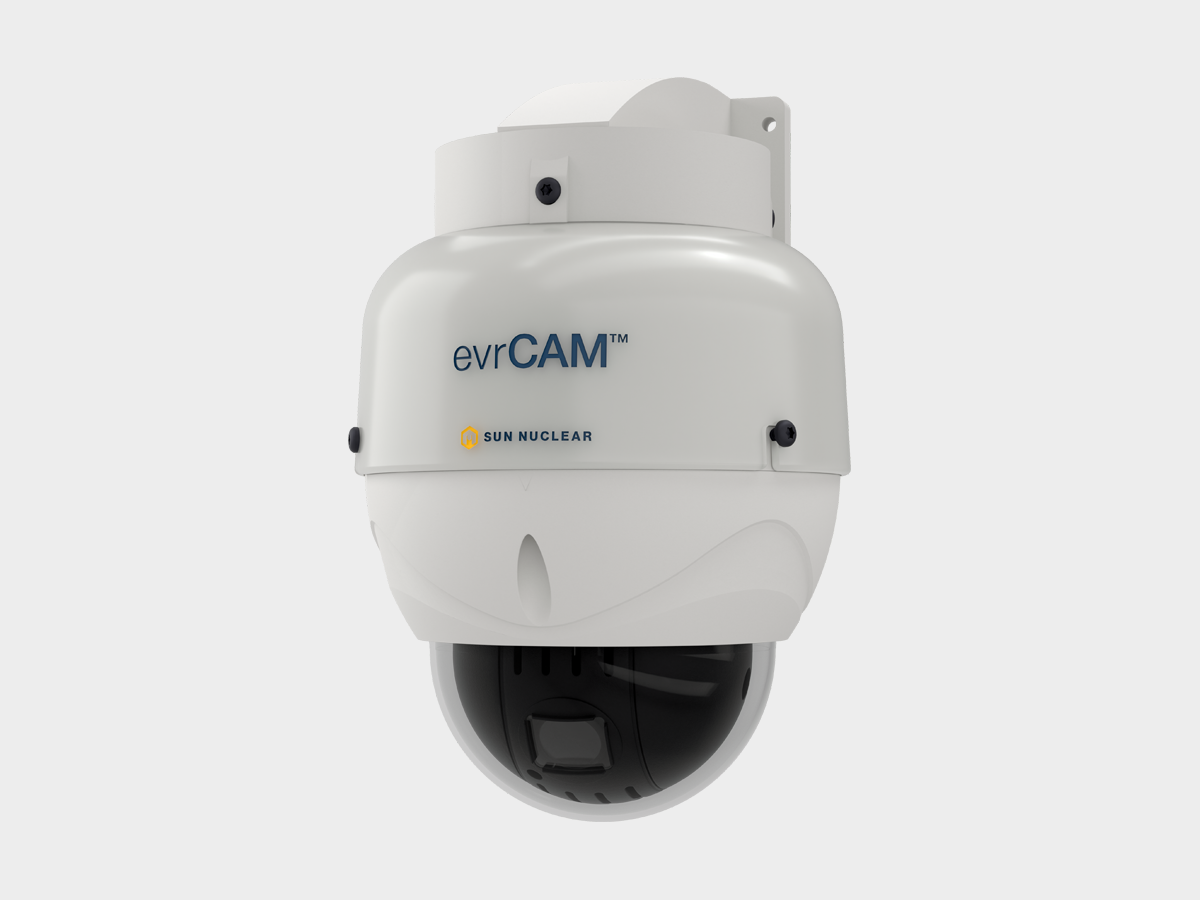

Analog Solution
- evrCAM connects directly to existing analog video displays via CVBS or TVI interface
- Compatible with Varian® Medical Systems TrueBeam®, VitalBeam™ and similar treatment delivery systems
- Connects directly to existing coaxial (video) and twisted pair cabling
- Includes hardware for wall mounting via pendant or flush ceiling installation
Digital Solution

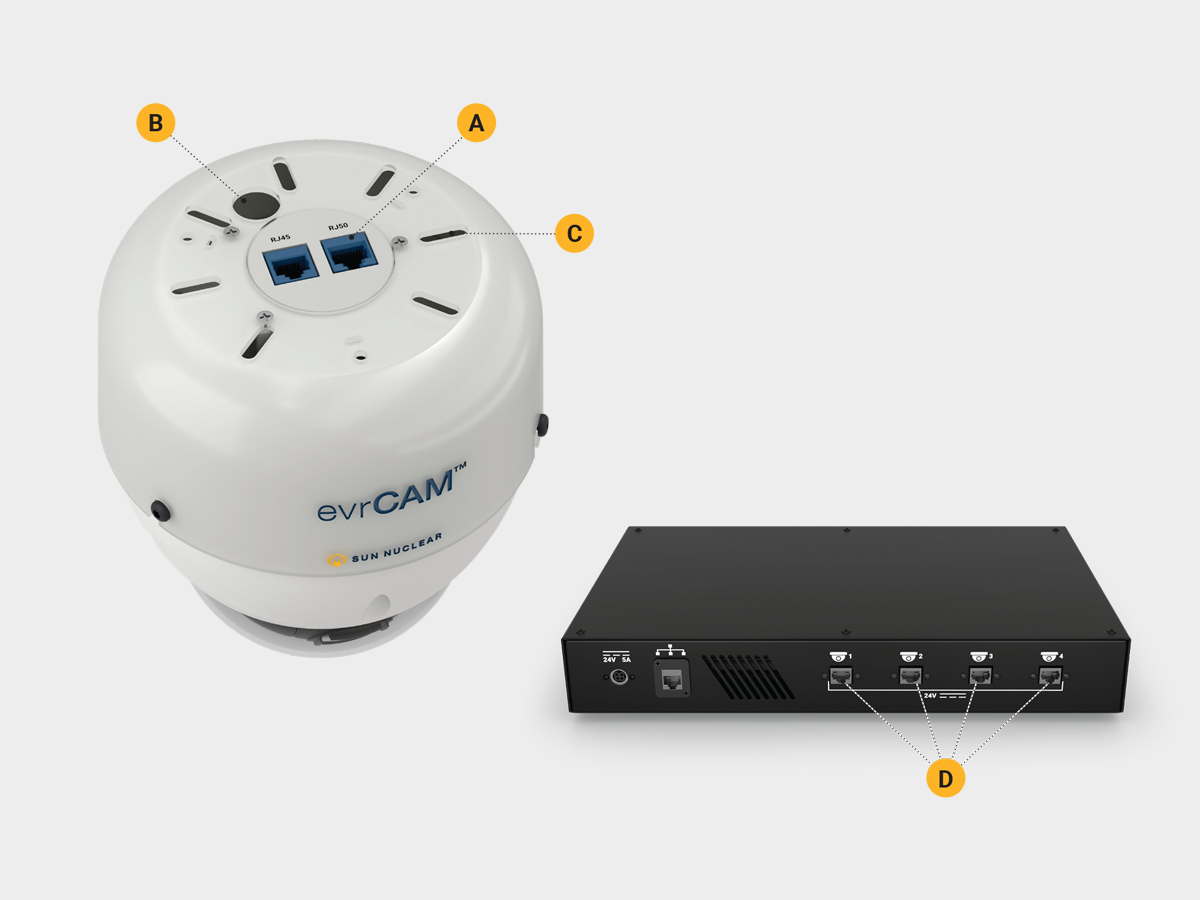

- evrCAM interfaces with digital infrastructures using a Digital Controller Box (sold separately)
- Compatible with Tyco ExacqVision® Server

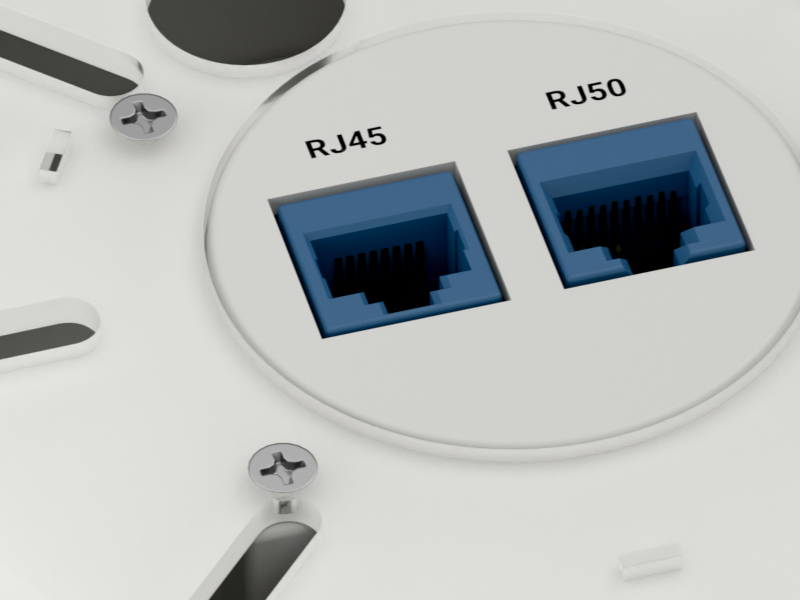

- A. RJ45/50 plug-and-play connector supports Ethernet-based video, power, and data interface
- B. Cable access port enables alternate video and power connections to the camera
- C. Includes hardware for wall mounting via pendant or flush ceiling installation
- D. Supports up to 4 cameras per controller box
Radiation Performance
- Withstands up to 200 Gy of cumulative exposure
- Maintains image quality with minimal image degradation up to 100 Gy*
- Shielded against neutron and photon radiation
*Tested using 6 MV and 15 MV beam spectra
Seamless Compatibility
- Integrates with existing wiring, controllers, and camera viewing systems (Cat5e or equivalent cabling)
- Compatible with most video management systems (VMS)
- Mounts to wall or ceiling with a twist-lock design for fast, secure installation
Clarity & Control
- Visibility in low-light conditions
- Full pan-tilt zoom (PTZ)
- High-resolution color and black-and-white video with auto-detection stream
Clear Video. Radiation Resilience.
Resources
Downloads
Specifications
Radiation Tolerance |
200 Gy (20 krad) |
PTZ Protocol |
Pelco-D (RS-485) |
Size, WxDxH |
161 x 161 x 205 mm (6.3 x 6.3 x 8.1 in) |
Size with pendant, WxDxH |
161 x 205 x 254 mm (6.3 x 8.1 x10 in) |
Camera Weight |
1.8 kg (4 lbs) |
Pendant Weight |
0.1 kg (0.3 lbs) |
| MoreLess | |
Local Power (barrel, bypass) |
DC 12V (±10%), 700 mA max |
Remote Power (RJ45 or RJ50) |
DC 24V (±25%) |
Cabling |
CAT5e or better (<150 ft), |
Data Communication |
RS-485 |
Baud Rate |
2400 - 57600 bps |
Camera Address |
001 - 255 (DIP switch) |
Protocol |
Pelco-D |
| MoreLess | |
Resolution |
2.1 MP |
Video Output |
TVI: 1920 x 1080p (30/25 fps) |
Minimum illumination |
<0.1 lux (color & black/white) |
S/N Ratio |
>52 dB |
Lens Aperture (f/#) |
2.8 |
Focal length |
5 - 64 mm |
Brightness |
Manual or Automatic |
Zoom |
12X optical, 12X digital, 144X total |
Pan Range |
360° continuous |
Tilt Range |
0° to 180° |
Max Speed |
360°/s |
Screen Flip |
Automatic at 90° tilt |
Presets |
>200 supported |
| MoreLess | |
Digital Controller Size, WxDxH |
412 x 254 x 71 mm (16.2” x 10” x 2.8”) |
Digital Controller Weight |
2.6 kg (5.7 lbs) |
Power Source |
DC 24V |
Camera Connections |
RJ45 (Supports up to 4 cameras) |
Server/PC Connector |
1x (RJ45) |
Certifications |
CE, FCC, IEC 60601-1-2 (Medical EMC), IEC 62368-1 |
Operating Temperature |
0 - 50° C |
Operating Relative Humidity |
20-80% |
